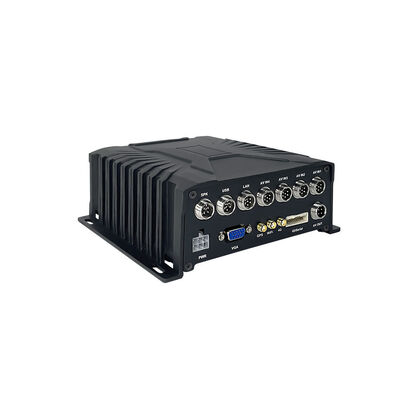

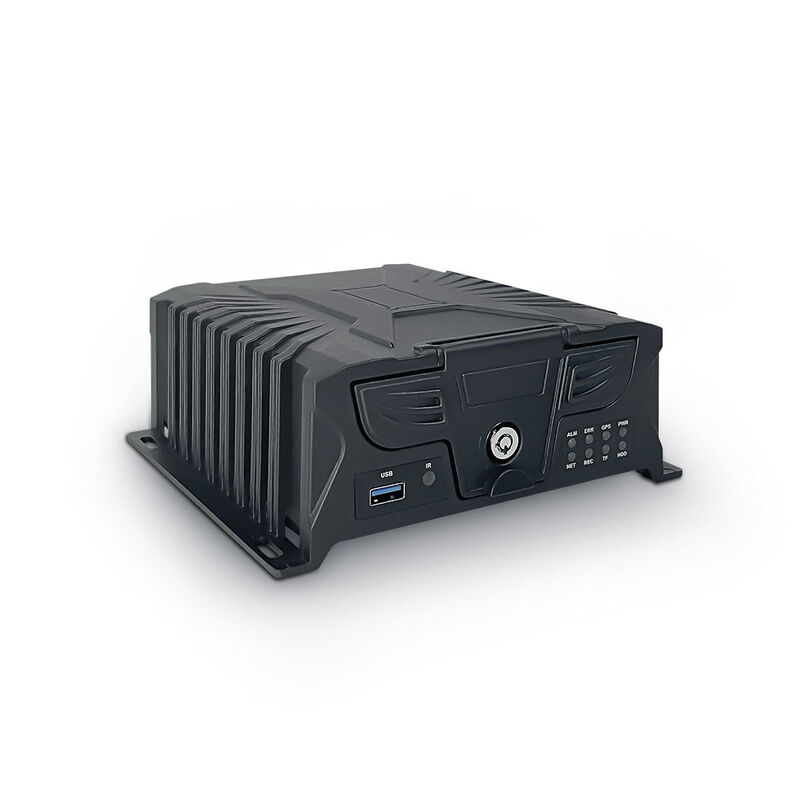

4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
Dettagli:
| Luogo di origine: | shenzhen |
| Marca: | Oxiang /OEM |
| Certificazione: | CE.RoHS,FCC |
| Numero di modello: | MD264 |
|
Informazioni dettagliate |
|||
| Rete: | Wi-Fi a 2,4 GHz (IEEE 802.11 b/g/n) | Il LED rosso lampeggia: | Alimentazione OK, in attesa della connessione WiFi |
|---|---|---|---|
| Tipo di alimentazione: | Batteria 18650 ricaricabile o cavo rigido AC12V-24V | CONSUMO: | Modalità di lavoro: 170mA Modalità standby: 200μA |
| Peso: | 600 g | Gamma di ritiro: | 5 metri |
| Umidità di lavoro: | < 95% | Funzione del messaggio: | Messaggio di sostegni che lascia funzione |
| Otturatore: | 1/25~1/100.000 al secondo | UMIDITÀ RELATIVA: | 85% senza condensa |
| Distanza IR: | 3 metri | Sensore di immagine: | SC2335/SC233A |
| Angolo orizzontale: | angolo orizzontale 140 | Angolo di rilevamento: | 110° |
| Funzione: | 3G/4G/GPS/WIFI | Energia: | DC12V/2A |
| Regolazione di immagine: | Supporta lo specchio di supporto HD/SD | Tasso impermeabile: | IP55 |
| Telecamera: | 1 megapixel, OV9732 (grandangolo 125°) | Ampio angolo: | 130 gradi |
| Dimensioni dello schermo: | 7 pollici | Risoluzione di ingresso della fotocamera: | AHD1080P/720P/CVBS |
| Tipo di sensore: | Video conteggio, accuratezza di 98% | Dimensione dell'host: | 200(L) x187(L) x62(A) mm |
| Compressione: | H.265 | Ingresso di tensione: | adattarsi a ultra-wide da 8 a 36 V |
| Supporto software: | CMSV6 e la nostra piattaforma privata | Garanzia: | 12 mesi |
| SDK: | SDK gratuito per il secondo sviluppo | Download di WIFI: | Supporto |
| Interfaccia operativa: | Interfaccia utente grafica (menu OSD) | Personalizzazione: | SÌ |
| Impermeabile: | IP69K | Antiurto: | Doppia anti-vibrazione |
| Funzioni: | Contapersone, 3G, GPS, sensore G, UPS | ||
| Evidenziare: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
Descrizione di prodotto
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
![]()
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
